Gates For Fields.
Our field gate designs have lasted for over two centuries. They are solid and dependable. If their intended use is indeed for field entrances then we recommend a lower cost softwood timber.
If you desire to have a field gate as entry to your countryside residence we recommend oak. Whatever the case, the gate will be hand made in the very same style and with the same care and attention.
Creosoted Field Gates
Pattern A. (Heavy Gate) 4½ ft. high.
Specification of 9 or 10 ft. Heavy Gate. Back 3 x 7 tapered to 3 x 4 from 3 x 11. Groin 3 x 5 ½. Head 3 x 3. Rails 1 ¼ x 4 tapered to 1 ¼ x 3 from 1 ¼ x 7. Braces 1 ¼ x 3 ½. Posts for above 8 ft., about 9 x 9 and 7 x 7 bevelled tops. 7 Pairs Posts – 1 Ton.
Creosoted Field Gates
Pattern B. Diamond Braced (Heavy Gate), 4½ ft. high
Specification of 9 or 10 ft. Heavy Gate. Back 3 x 7 tapered to 3 x 4 from 3 x 11. Groin 3 x 5 ½. Head 3 x 3. Rails 1 ¼ x 4 tapered to 1 ¼ x 3 from 1 ¼ x 7. Braces 1 x 3 ½. Posts for above 8 ft., about 9 x 9 and 7 x 7 bevelled tops. 7 Pairs Posts – 1 Ton.
Creosoted Field Gates
Pattern A. (Light Gate) 4½ ft. high.
Specification of 9 or 10 ft. Light Gate. Back 3 x 5 ½ tapered to 3 x 3 ½ from 3 x 9. Groin 3 x 4 ½ . Head 2 ½ x 3. Rails 1 x 4 tapered to 1 x 3 from 1 x 7. Braces 1 x 3 ½ . Posts for above 8 ft., about 8 x 8 and 7 x 7 bevelled tops. 8 Pairs Posts = 1 Ton.
Creosoted Field Gates
Pattern B. Diamond Braced (Light Gate), 4½ ft. high
Specification of 9 or 10 ft. Light Gate. Back 3 x 5 ½ tapered to 3 x 3 ½ from 3 x 9. Groin 3 x 4 ½ . Head 2 ½ x 3. Rails 1 x 4 tapered to 1 x 3. Braces 1 x 3 ½ . Posts for above 8 ft., about 8 x 8 and 7 x 7 bevelled tops. 8 Pairs Posts = 1 Ton.
Creosoted Field Gates
Pattern C. Planed Gate, 10 ft. long, 4 ft. 9 ins. high.
Specification. – Back 3 x 5. Rails 1 x 3. Groin 3 x 5 ½. Brace 2 x 3. Head 3 x 3. Struts 2 x 3. Bottom Rail 3 x 3. The Rails are mortised through Brace and Struts. 7 x 7 rounded tops, either Planed and Creosoted or Planed and Painted. Posts for above 8 ft. – about 9 x 9 and 7 Pairs Posts = 1 Ton
Creosoted Field Gates

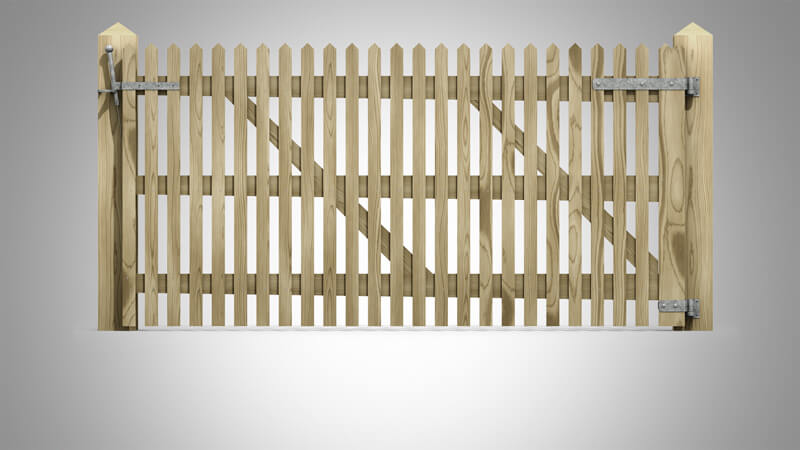

Pattern D. Paled Gate, 10 ft. long, 5 ft. high.
Specification – Groin 3 x 5 ½. Head 3 x 3. Rails 2 x 5 ½ tapered to 2 x 3 ½ from 2 x 9. Braces 2 x 5 ½ tapered to 2 x 3 ½ from 2 x 9. Pointed Pales 1 x 3. Posts for above 8 ft. about 9 x 9 and 7 x 7 bevelled tops. 7 Pairs Posts = 1 Ton.
English Oak Field Gates

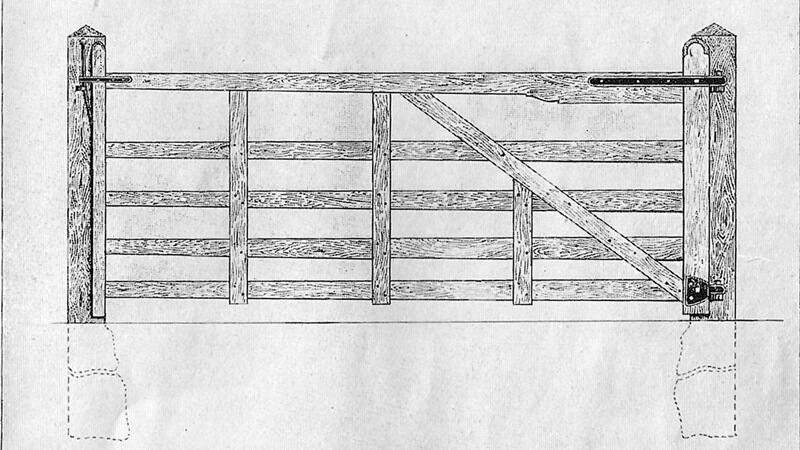

Pattern G. 10 ft. long.
Specification.
Back 3 x 5, tapered to 3 x 3. Rails 1 x 4, tapered to 1 x 3. Groin 3 x 5. Head 2 ½ x 3. Braces 1 x 3 ½ English Oak Posts for above 8ft., 8 x 8 and 7 x 7 bevelled tops. About 12 Gates = 1 Ton. 7 Pairs Posts = 1 Ton.
English Oak Field Gates
Pattern H. DIAMOND BRACED, 10 ft. long.
Specification.
Back 3 x 5, tapered to 3 x 3. Rails 1 x 4, tapered to 1 x 3. Groin 3 x 5. Head 2 ½ x 3. Braces 1 x 3 ½. English Oak Posts for above 8 ft., 8 x 8 and 7 x 7 bevelled tops. About 12 Gates = 1 Ton. 7 Pairs Posts = 1 Ton.
English Oak Field Gates

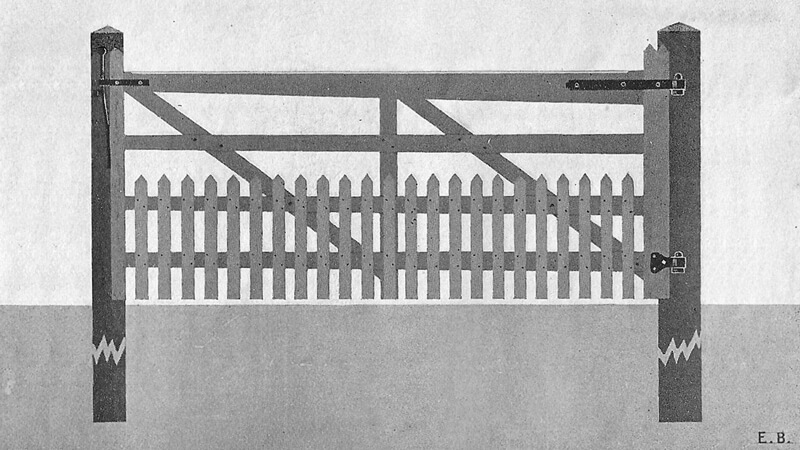

Pattern T. YARD GATE with Pales at bottom, 10 ft. long, 4 ft. 6 ins. high.
Specification.
Back 3 x 7 tapered to 3 x 4 from 3 x 11. Rails 1 ¼ x 4 tapered to 1 ¼ x 3 from 1 ¼ x 7. Groin 3 x 5 ½. Head 3 x 3. Braces 1 x 3 ½. Pales 1 x 3, pointed. Posts for above 8 ft., 9 x 9 and 7 x 7 bevelled tops. About 14 Gates = 1 Ton. 7 Pairs Posts = 1 Ton.
English Oak Field Gates

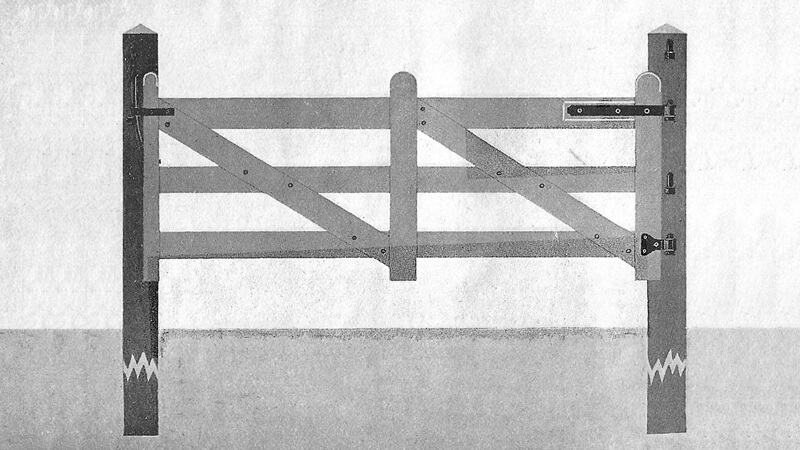

Pattern U. CREW YARD GATE, 10 ft. long, 4 ft. high.
Specification.
Back 2 x 7. Groin 4 x 6. Head 3 ½ x 4. Rails 2 x 6. Braces 1 ½ x 6. Posts for above, one 11 ft., 9 x 9, and one 10 ft., 7 x 7, bevelled tops. 2 sets of Hooks are supplied if Ironwork is ordered. About 12 Gates = 1 Ton. 5 Pairs Posts = 1 Ton.
English Oak Field Gates
Pattern V. 10 ft. long, 4 ft. 6 ins. high.
Specification.
Back 1 ½ x 6 ½ tapered to 1 ½ x 4 ½ from 1 ½ x 11. Groin 2 x 6. Head 2 pieces 1 x 3. Rails 1 x 3. Braces 1 x 3. Posts for above 8 ft., 8 x 8 and 7 x 7 bevelled tops. About 18 Gates = Ton. 8 Pairs Posts = 1 Ton.
English Oak Field Gates
Pattern W. 10 ft. long, 4 ft. 6 ins. high.
Specification.
Back 3 x 7 tapered to 3 x 4 from 3 x 11. Groin 3 x 5 ½. Head 3 x 3. Rails 1 ¼ x 4 tapered to 1 ¼ x 3 from 1 ¼ x 7. Braces 1 x 3 ½. Posts for above 8 ft., 9 x 9 and 7 x 7 bevelled tops. About 15 Gates = 1 Ton. 7 Pairs Posts = 1 Ton.
English Oak Field Gates
Pattern No. 22. Light Field Gate, 9 ft. long, 4 ft. high.
Specification: Back 2 ½ x 3. Groin 3 x 4 ½. Head 2 ½ x 3. Rails 1 x 3. Braces 1 x 3. Posts for above, one 7 ft. and one 8 ft. Half-round Fir Posts.
English Oak Field Gates
Pattern No. 23. With Iron Bars, 9 ft. 6 ins. long, 4 ft. high.
Specification.–Back 3 x 3. Groin 3 x 4 ½. Head 2 ½ x 3. Bottom Rail 2 ½ x 3. Struts 2 ½ x 3. Brace 2 ½ x 3. 5/8 in. Round Iron Bars. Iron Bands on Head of Gate. Posts for above, one 8 ft. about 9 x 9, and one 8 ft. 7 x 7. Bevelled Tops. 7 Pairs Posts = 1 Ton.
English Oak Field Gates

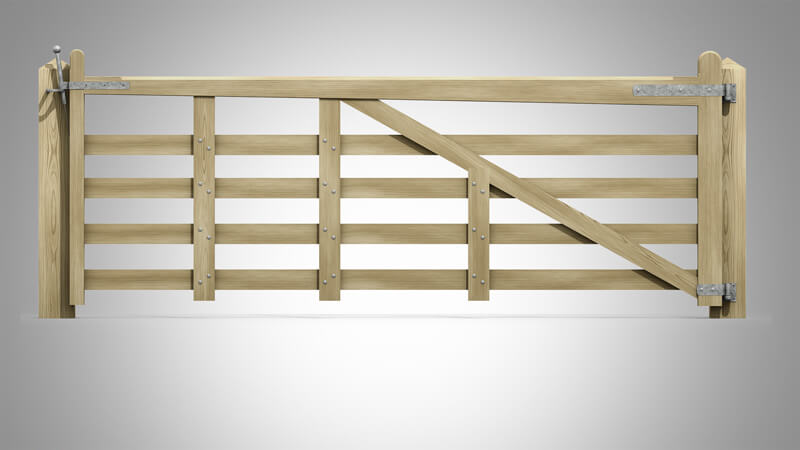

Pattern No. 30. 9 or 10 ft. long, 4 ft. high.
Specification.–Back 3 x 5 ½, tapered to 3 x 3 ½ from 3 x 9. Groin 3 x 5 ½. Head 3 x 3. Rails 1 x 3 ½. Braces 1 x 3 ½.
Posts for above, 8 ft.–about 8 x 8 and 7 x 7, bevelled tops. 8 Pairs Posts = 1 Ton.
English Oak Field Gates

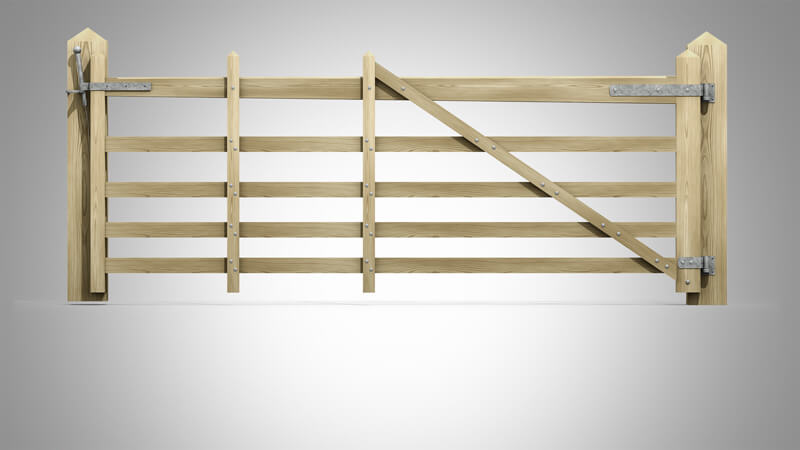

Pattern No. 31. 10 ft. long, 4 ft. high.
Specification.–Back 3 x 5 ½, tapered to 3 x 3 ½ from 3 x 9. Groin 3 x 4 ½. Head 3 x 3 ½. Rails 1 x 3. Struts 2 ½ x 2 ½. Braces 2 ¼ x 2 ½. Struts and Brace bolted to back. Posts for above 8 ft.–about 8 x 8 and 7 x 7 1/4 bevelled tops. 8 Pairs Posts = 1 Ton.
