Handmade Field Gates Pattern A (Heavy Gate)

Handmade Field Gates Pattern A (Heavy Gate).

Heavy Gate

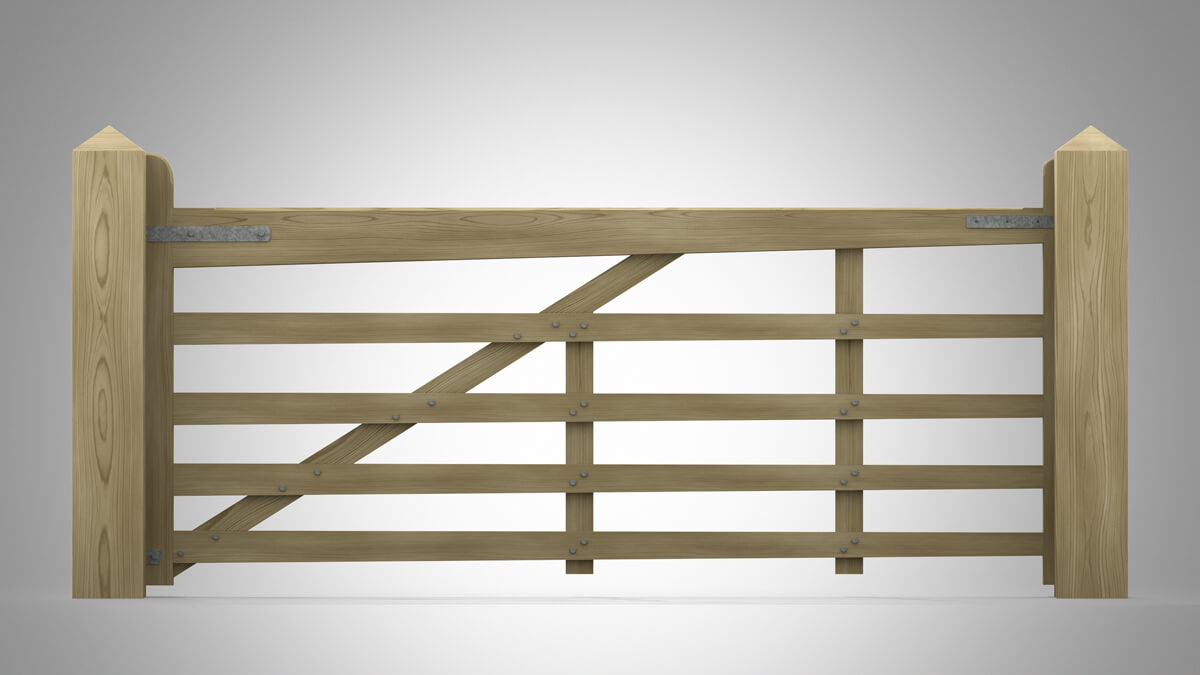

As all of our field gates are handmade, images shown are for illustrative purposes only and may differ slightly from the finished gate.
Please note that the posts shown in the images are not included as standard, but can be supplied as part of your order. Any ironwork shown is also not included as standard. We can supply gate posts and ironwork if required. Please indicate on the enquiry form your gate post and ironwork requirements.
Unless stated at point of order, all handmade field gates are made to hinge on the right-hand post when opening from you. The gates illustrated are all right-handed gates, and are only put in front of posts to show the whole of the gate. A gate hung on the right-hand post and opening from you is a right-hand gate; if hung on the left-hand post it is a left-handed gate. Field Gates are carried 20 to the Tonne.
Make Enquiry ...

Pattern A (Heavy Gate)

Height

1350mm

Length

2700mm or 3000mm

Back

Back 75mm x 175mm tapered to 75mm x 100mm from 75mm x 275mm

Rails

32mm x 100mm tapered to 32mm x 75mm from 32mm x 175mm

Groin

75mm x 138mm

Head

75mm x 75mm

Braces

32mm x 89mm

Posts for above 2.4m

225mm x 225mm and 175mm x 175mm bevelled tops. About 16 Gates = 1 Tonne. 7 Pairs Posts = 1 Tonne.
