Handmade Field Gates Pattern C (Planed Gate)
Planed Gate.
This gate can either be made in Redwood Planed and Creosoted, or Redwood Planed and Painted two coats in White. When ordering please state what kind required.

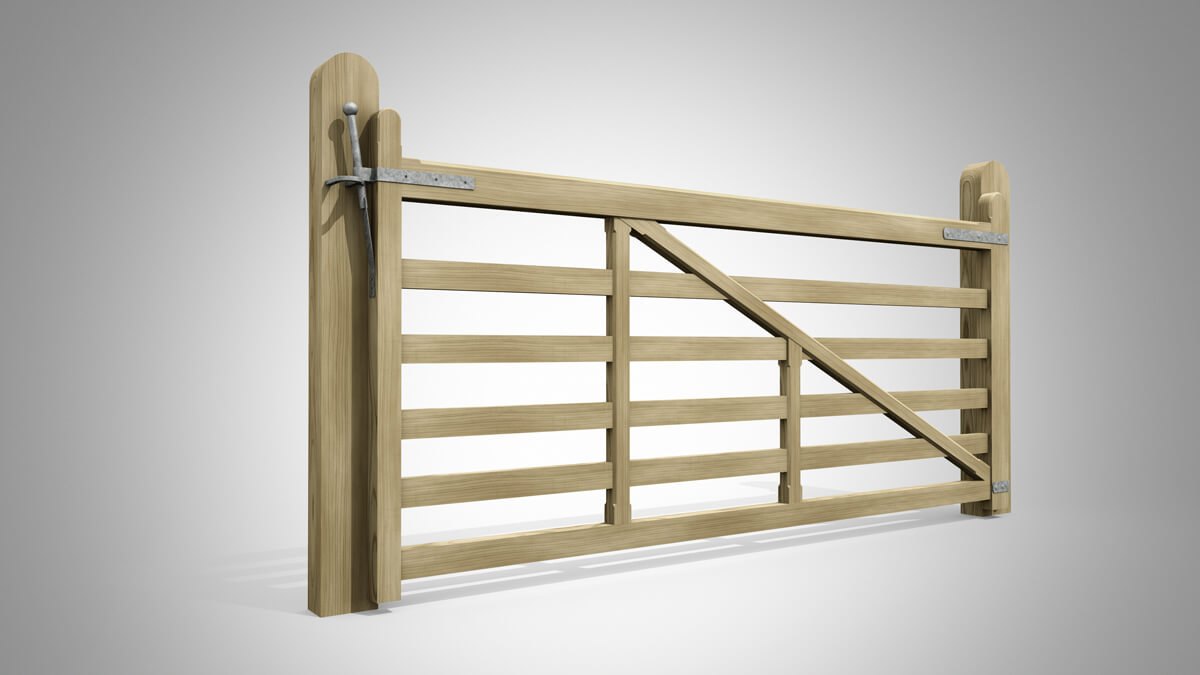

As all of our field gates are handmade, images shown are for illustrative purposes only and may differ slightly from the finished gate.
Please note that the posts shown in the images are not included as standard, but can be supplied as part of your order. Any ironwork shown is also not included as standard. We can supply gate posts and ironwork if required. Please indicate on the enquiry form your gate post and ironwork requirements.

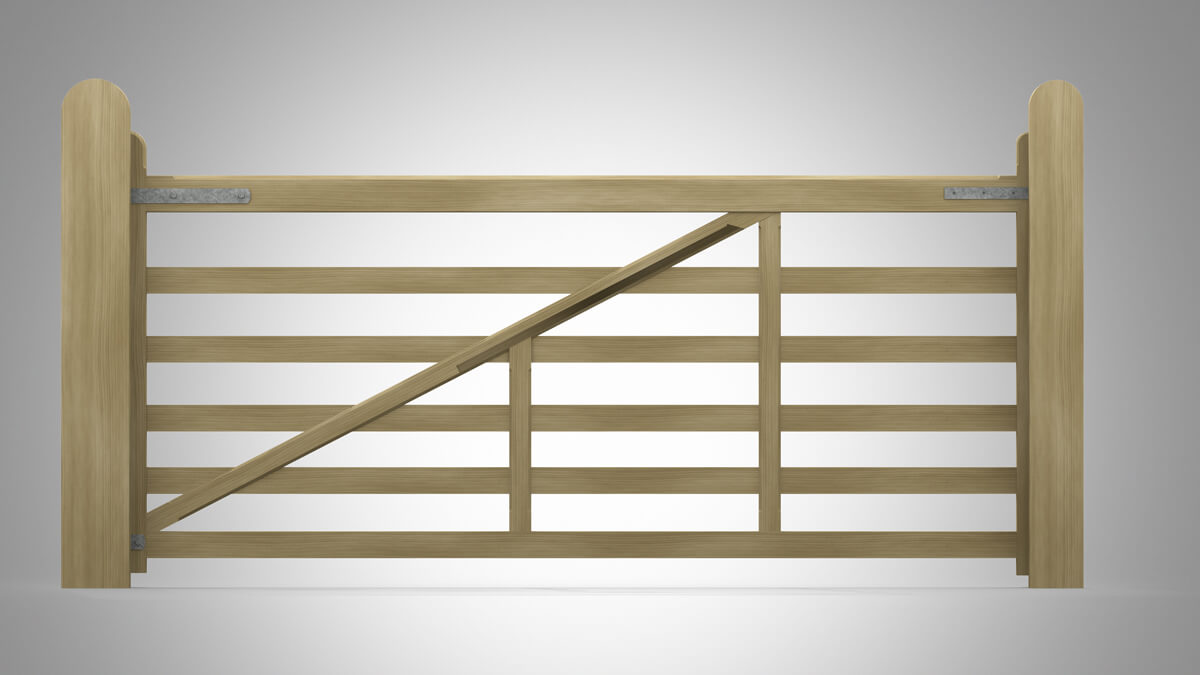

Unless stated at point of order, all handmade field gates are made to hinge on the right-hand post when opening from you. The gates illustrated are all right-handed gates, and are only put in front of posts to show the whole of the gate. A gate hung on the right-hand post and opening from you is a right-hand gate; if hung on the left-hand post it is a left-handed gate. Field Gates are carried 20 to the Tonne.

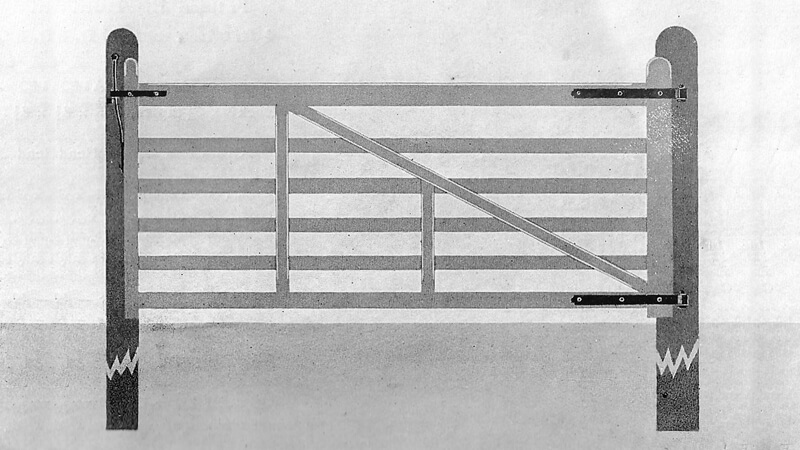

Pattern C (Planed Gate)
Height
1425mm
Length
3000mm
Back
75mm x 125mm
Groin
75mm x 138mm
Head
75mm x 75mm
Rails
25mm x 75mm
Braces
50mm x 75mm
Struts
50mm x 75mm
Bottom Rail
75mm x 75mm. The Rails are mortised through Brace and Struts. 175mm x 175mm rounded tops, either Planed and Creosoted or Planed and Painted.
Posts for above 2.4m
About 225mm x 225mm and 7 Pairs Posts + 1 Tonne
Height | 1425mm |
Length | 3000mm |
Back | 75mm x 125mm |
Groin | 75mm x 138mm |
Head | 75mm x 75mm |
Rails | 25mm x 75mm |
Braces | 50mm x 75mm |
Struts | 50mm x 75mm |
Bottom Rail | 75mm x 75mm. The Rails are mortised through Brace and Struts. 175mm x 175mm rounded tops, either Planed and Creosoted or Planed and Painted. |
Posts for above 2.4m | About 225mm x 225mm and 7 Pairs Posts + 1 Tonne |
