Handmade Field Gates Pattern U (Crew Yard Gate)

Handmade Field Gates Pattern U (Crew Yard Gate).

Crew Yard Gate

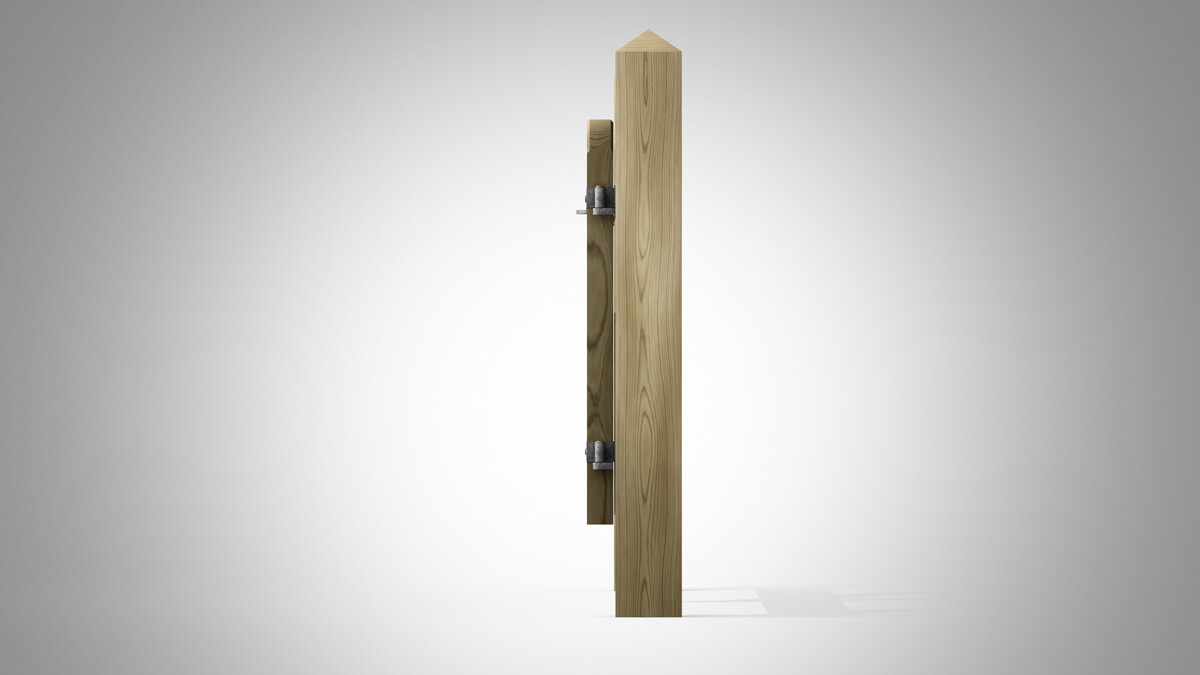

As all of our field gates are handmade, images shown are for illustrative purposes only and may differ slightly from the finished gate.
Please note that the posts shown in the images are not included as standard, but can be supplied as part of your order. Any ironwork shown is also not included as standard. We can supply gate posts and ironwork if required. Please indicate on the enquiry form your gate post and ironwork requirements.
Unless stated at point of order, all handmade field gates are made to hinge on the right-hand post when opening from you. The gates illustrated are all right-handed gates, and are only put in front of posts to show the whole of the gate. A gate hung on the right-hand post and opening from you is a right-hand gate; if hung on the left-hand post it is a left-handed gate. Field Gates are carried 20 to the Tonne.
Make Enquiry ...

Pattern U (Crew Yard Gate)

Height

1200mm

Length

3000mm

Back

50mm x 175mm

Rails

50mm x 150mm

Groin

100mm x 150mm

Head

89mm x 100mm

Braces

38mm x 150mm

Pales

25mm x 75mm, pointed

Posts for above

225mm x 225mm and one 3.0m, 175mm x 175mm, bevelled tops. 2 sets of Hooks are supplied if ironwork is ordered. About 12 Gates = 1 Tonne. 5 Pairs Posts = 1 Tonne.
